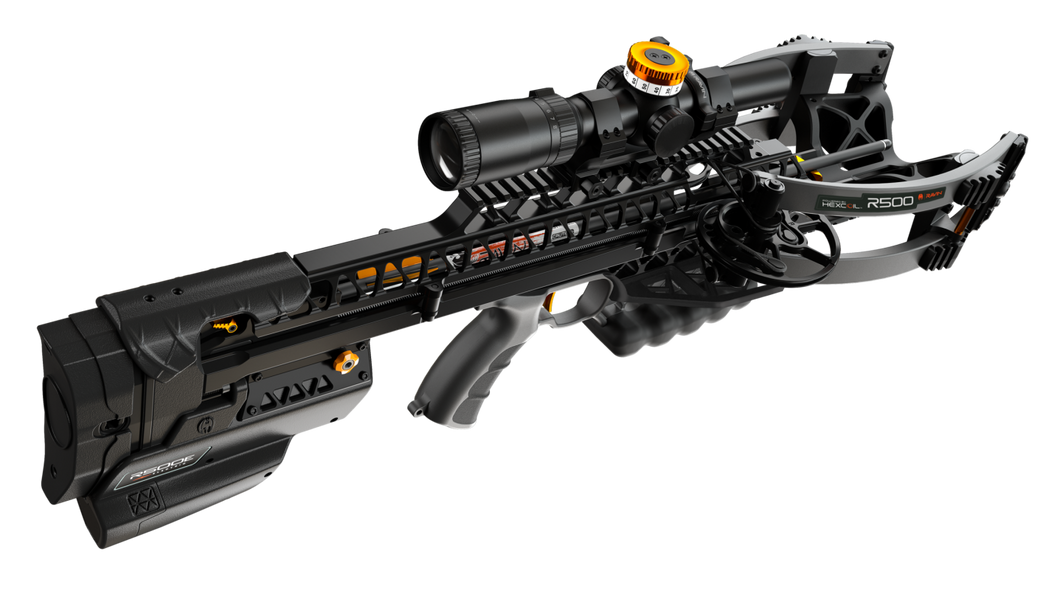

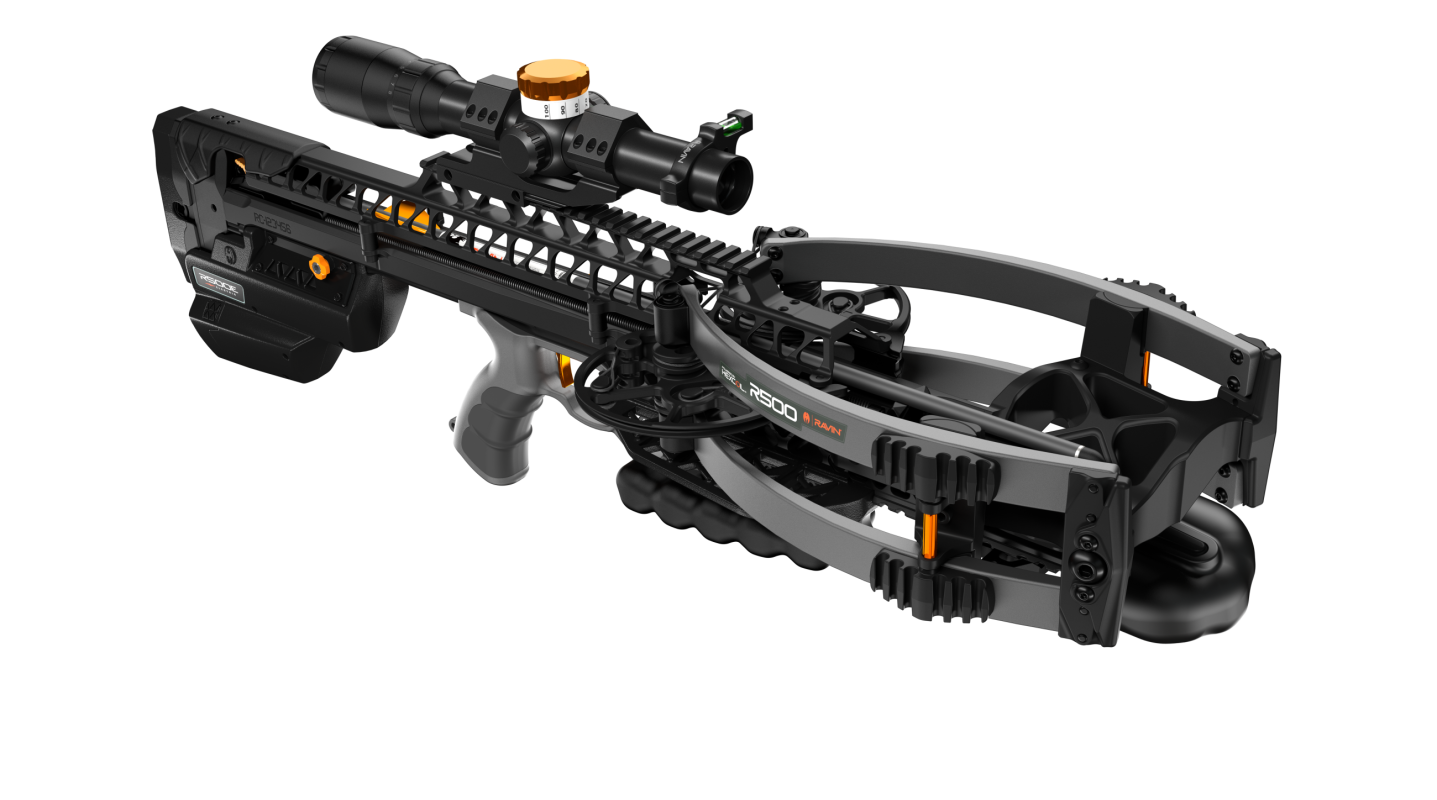

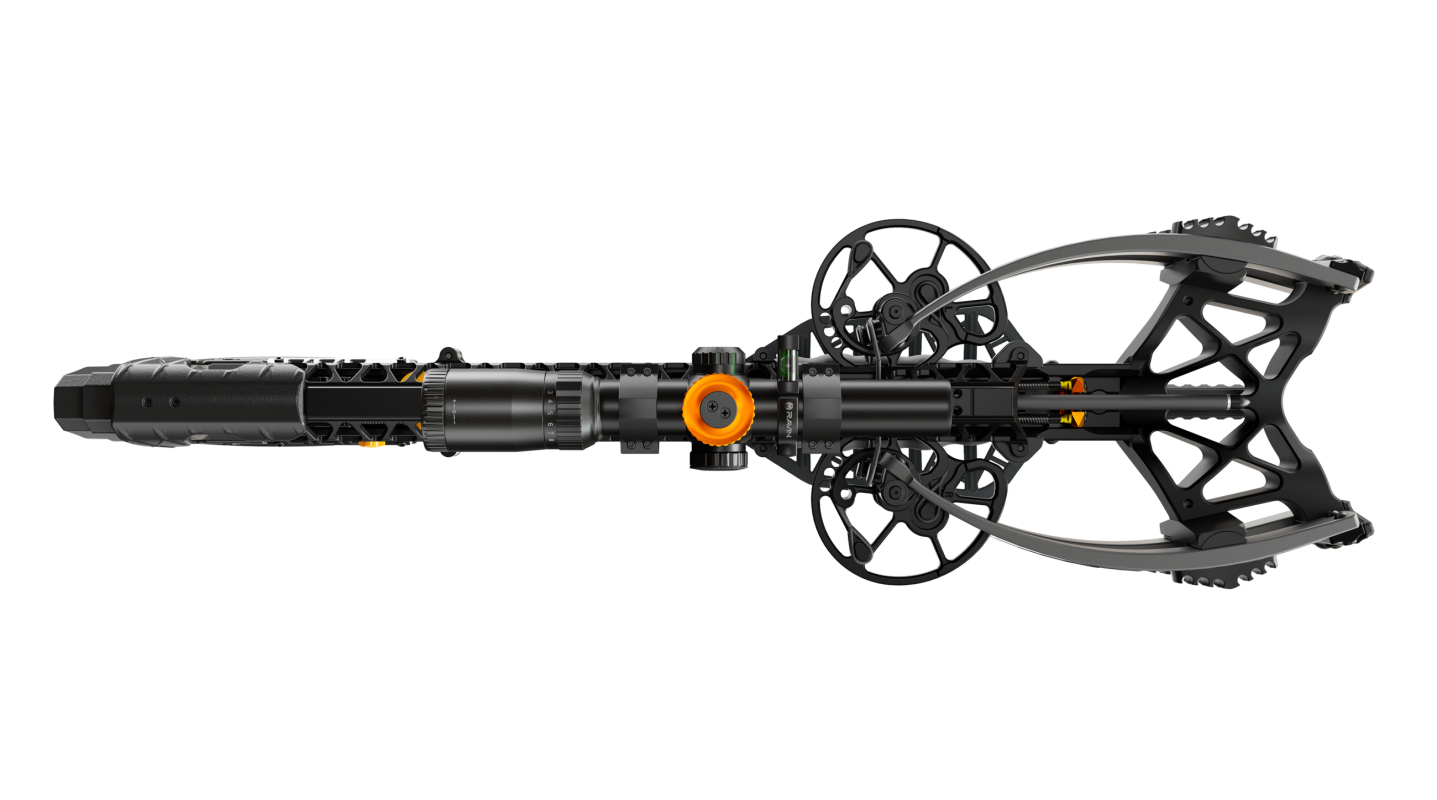

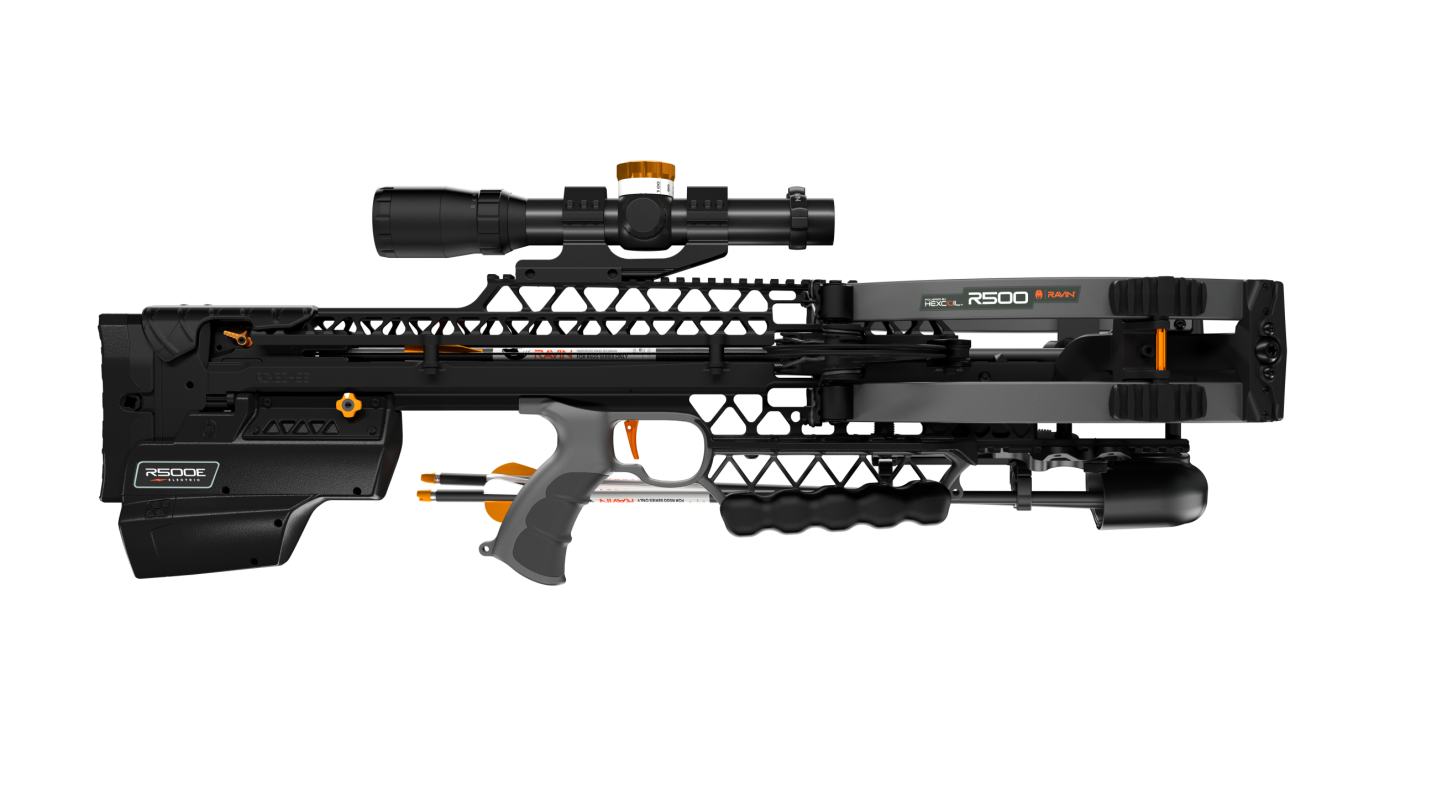

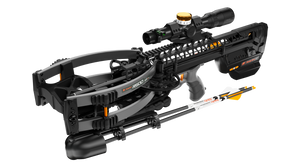

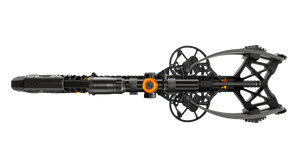

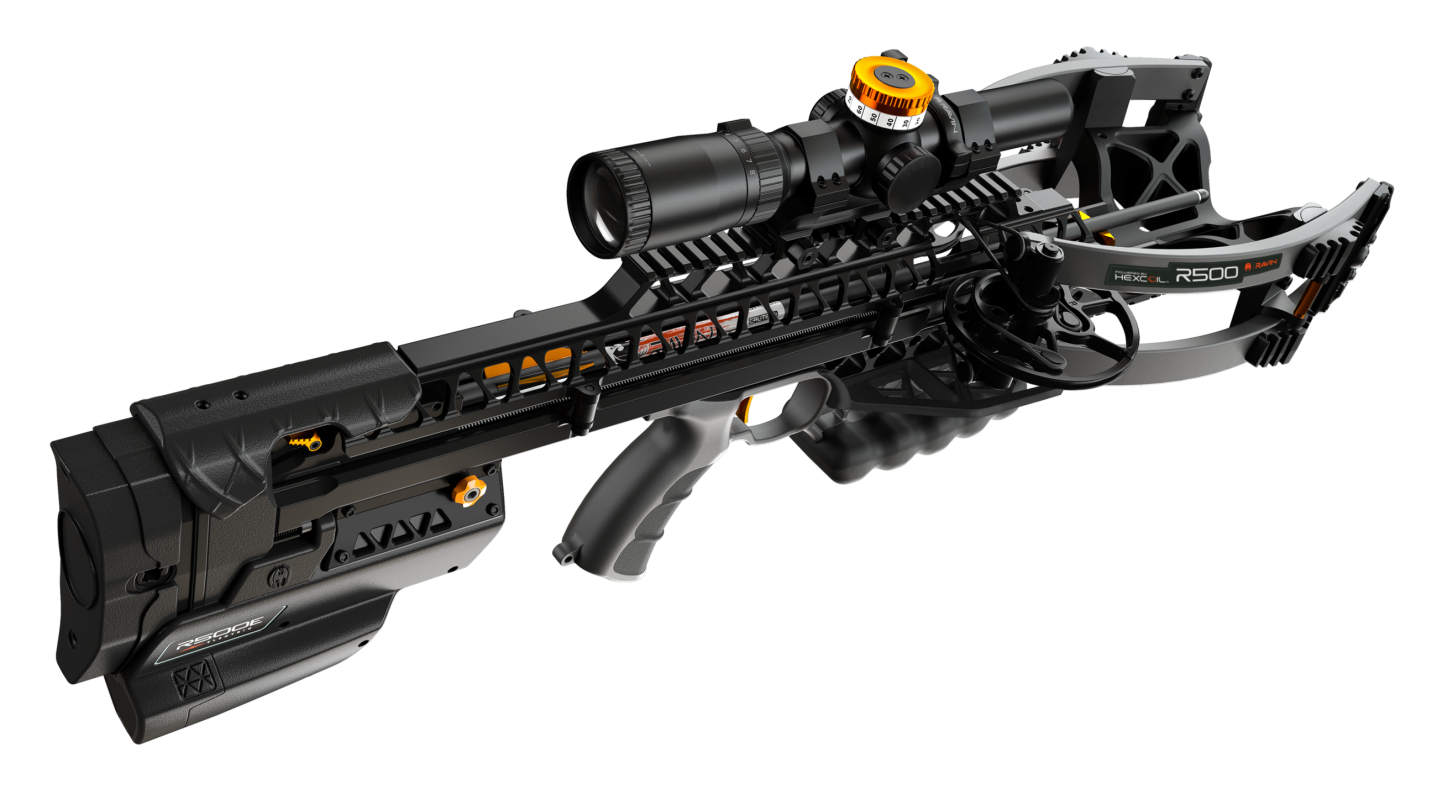

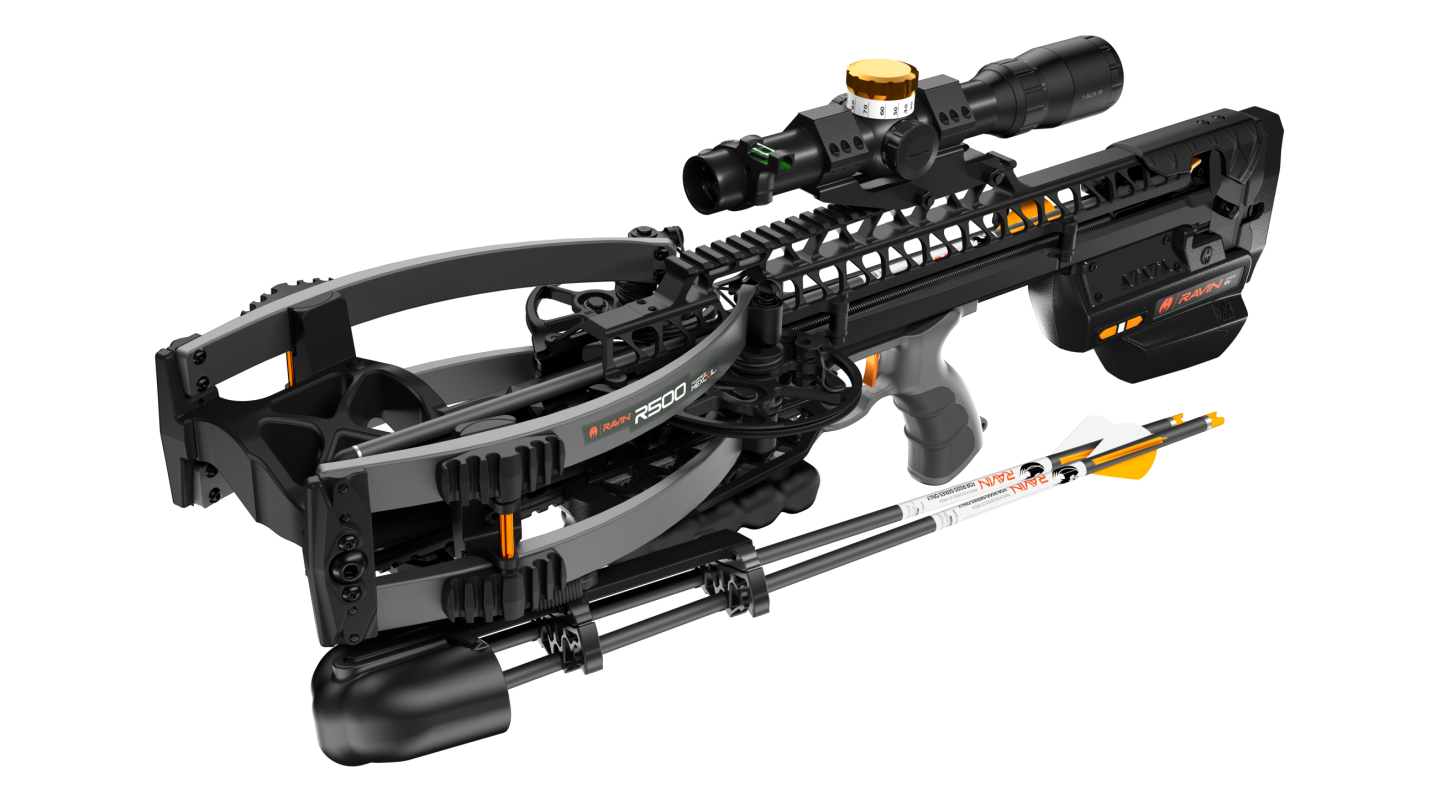

Ravin R500E Sniper Crossbow Package

The R500E Sniper shoots 500 FPS and allows you to stay laser focused with the included Adjustable Turret Scope. The HexCoil Cam System and the Ravin Electric Drive System allows users to cock and decock at the push of a button – backed by the confidence of the Ravin VersaDrive Cocking system. To seal the takedown – our Ravin Sniper accessory package also includes 6 premium arrows and Scope Level.

ELECTRIC DRIVE SYSTEM The new Ravin Electric Drive System changes the game. With an easy push of a button, the hunter can automatically cock or decock their bow. The Electric Drive Kit consists of a motor unit that attaches to the stock and is quickly detachable to store in a pack or pocket.

VERSADRIVE COCKING SYSTEM The internal screw drive moves the Trac Trigger Firing System (TTFS) back and forth and an internal clutch eliminates over-cocking, allowing cocking and uncocking to be stopped or resumed at any time during the process.

HEXCOIL CAM SYSTEM A proprietary system rotates cams an incredible 360 degrees, reforming traditional crossbows into the fastest, most accurate and compact designs ever seen.

SILENT COCKING The Fully Integrated Silent Cocking System works in. conjunction with the Trac Trigger Firing System and includes a built-in one way bearing removing any noise, resulting in a completely silent draw. The cocking mechanism allows you to stop the draw cycle at any time during the cocking process. They'll never hear you coming.

TRAC-TRIGGER™ FIRING SYSTEM A patented built-in trigger mechanism that slides forward on the rail and clasps directly to the precise center of the string every time the bow is drawn, allowing for straight-line nock travel. This unique Helicoil advantage creates a perfectly balanced draw for unmatched down range accuracy with every shot.

FRICTIONLESS™ FLIGHT SYSTEM This patented technology allows the arrow and string to free float above the rail, eliminating friction for consistent accuracy and increased string and cable life. This unique HeliCoil advantage delivers astounding target accuracy with every shot.

  INCLUDES

• VersaDrive Cocking System
• Anti-Dry Fire / Auto Safety
• Built-in Sling Mounts
• Adjustable Cheek Pad
• Adjustable Buttstock
• 6 .001 R500 Series Premium Arrows & Field Points (400 Grain Total)
• 1 Removable Draw Handle
• 1 Quiver with Mounting Bracket
• Adjustable Turret Scope
• Ravin Scope Level
• Electric Cocking Motor, Charger & Removable Battery
• Fully Assembled / Pre-Tuned

Specifications

Speed (400 gr.) 500 fps

Weight 9.9 lbs

Length 28.5"

Width (Cocked) 3.6" AXEL TO AXEL

Width (Uncocked) 7.75" AXEL TO AXEL

Power Stroke 15"

Powered by Hexcoil Cam System

Draw Force 17 lbs
